x40 Zoom
(x20 optical x2 digital)
2 axis
360° non-continuous gimbal
1280 x 720p
Infrared
Night vision drone for stabilized surveillance

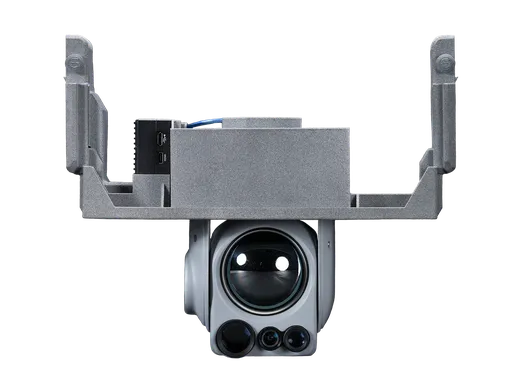

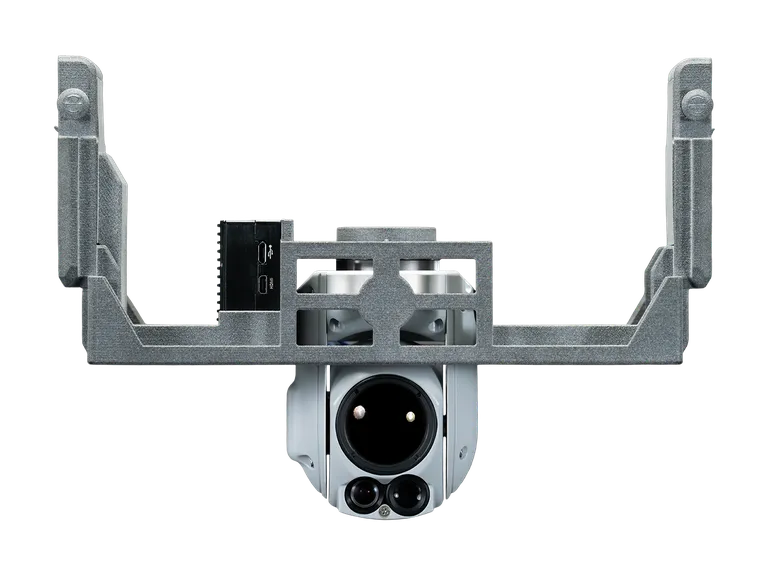

NightHawk2-UZ, a dual EO-IR stabilized camera turret, is engineered for precision for long-range observation missions. More affordable than the NextVision Raptor, it provides full HD recording for night vision drones.

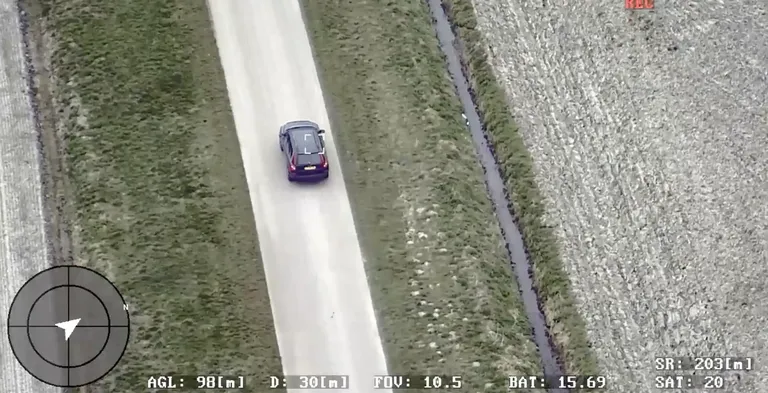

With micro-stabilized gimbal cameras, Nighthawk 2 UZ delivers precision and reliability for commercial and security applications, offering RGB and thermal drone outputs.
Camera specifications
Model name

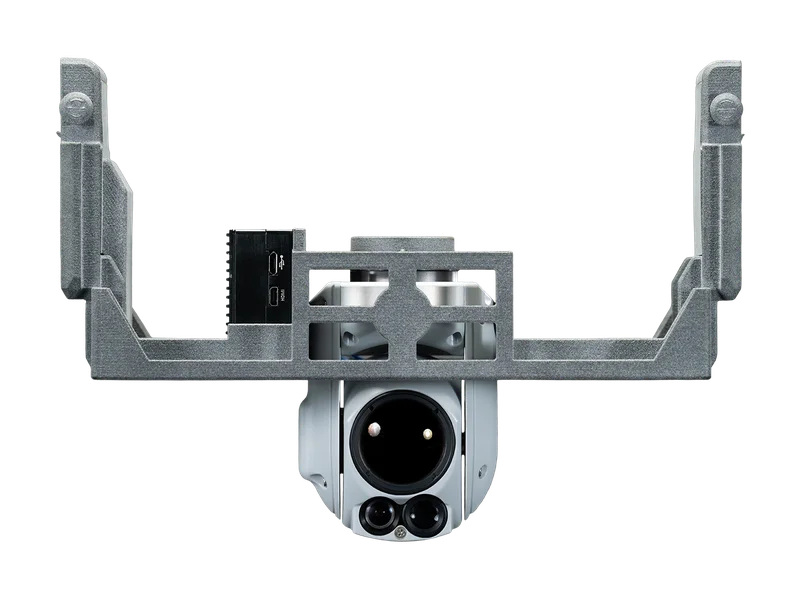

NextVision Nighthawk 2 UZ
Weight
325 grams
Dimensions
64mm x 94 mm
Thermal resolution
640×480
Visible camera configuration 1
Visible 400-700 nm | Resolution: 1280x720 | Zoom : x20 + x2 digital, (total x40) continuous zoom | HFOV: 60° WFOV – 3° NFOV – 1.5° DFOV
Visible camera configuration 2
Visible 400-700 nm | Resolution: 1920 x 1080 | Zoom : x13 + x2 digital, (total x26) continuous zoom | HFOV: 60° WFOV – 4.5° NFOV – 2.2° DFOV
Thermal camera
LWIR uncooled (8-14µm) | Resolution: 1280x720 | Zoom: x4 digital, continuous zoom | HFOV: 25° W.FOV - 6° D.FOV
Control interface
RS-232
Temperature
-20°C [-4°F] to +55°C [+131°F]
Field of Regard
Pan : 360° (non-continuous) | Tilt : -45° to +135°
Power consumption
Typical 6W
Other thermal drone camera
Let's talk about your project
Connect with a DeltaQuad Solutions Specialist to find the ideal payload(s) to give your Evo night vision drone capabilities.
