x80
Zoom (x40 optical x2 digital)
360°
Continuous rotation
1280 x 720p
Infrared
RGB and Thermal camera with HD onboard recording

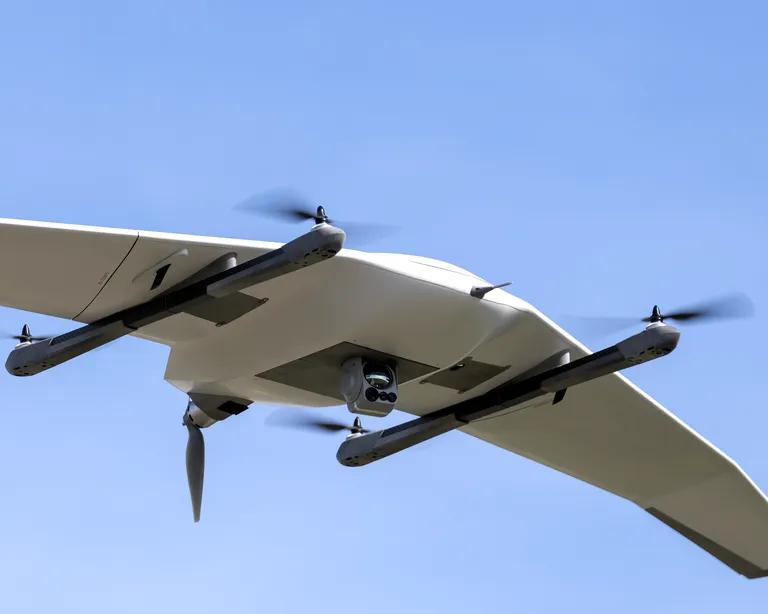

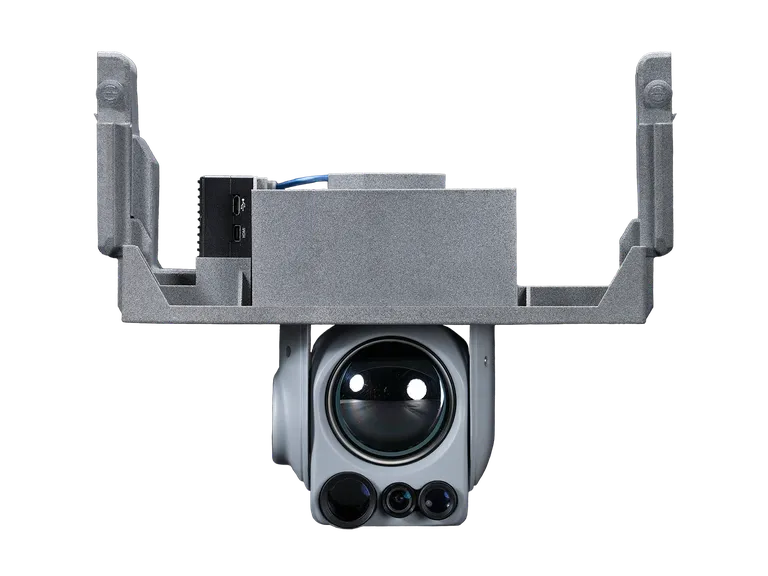

NextVision Raptor 360 is a premium EO-IR stabilized camera ideal for long-distance surveillance missions, especially object tracking, recognition, following and geolocation. It is highly capable as a thermal drone, offering exceptional clarity (x80 EO zoom) and reliability with thermal output for flawless night vision drone operation.
Camera specifications
Model name
NextVision Raptor 360
Weight
640 grams
Dimensions
100mm x 128mm
Field of Vision
60° WFOV – 1.5° NFOV – 0.75° DFOV
Thermal resolution
1280×720
Visible camera configuration 1
Visible 400-700 nm | Resolution: 1280x720 | Zoom : x40 + x2 digital, (total x40) continuous zoom | HFOV: 60° WFOV – 1.5° NFOV – 0.75° DFOV
Visible camera configuration 2
Visible 400-700 nm | Resolution: 1920 x 1080 | Zoom : x27 + x2 digital, (total x54) continuous zoom | HFOV: 60° WFOV – 2.2° NFOV – 1.1° DFOV
Thermal drone camera
LWIR uncooled (8-14µm) | Resolution: 1280 x 720 | Zoom: x8 digital, continuous zoom | HFOV: 17.5° W.FOV - 2.2° D.FOV
Control interface
RS-232
Video interface
Micro-HDMI
Stabilization
< 50 µrad
Power requirement
15-32 VDC
Temperature
-20°C [-4°F] to +55°C [+131°F]

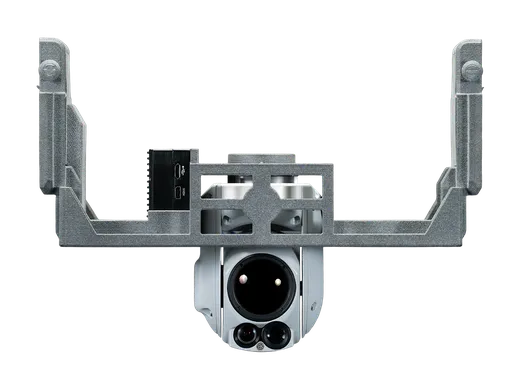

Other thermal drone camera
Let's talk about your project
Connect with a DeltaQuad Solutions Specialist to find the ideal payload(s) to give your Evo night vision drone capabilities.
